Origin Smart – Plus Smart Door Handle

Product image 1
1 / 11

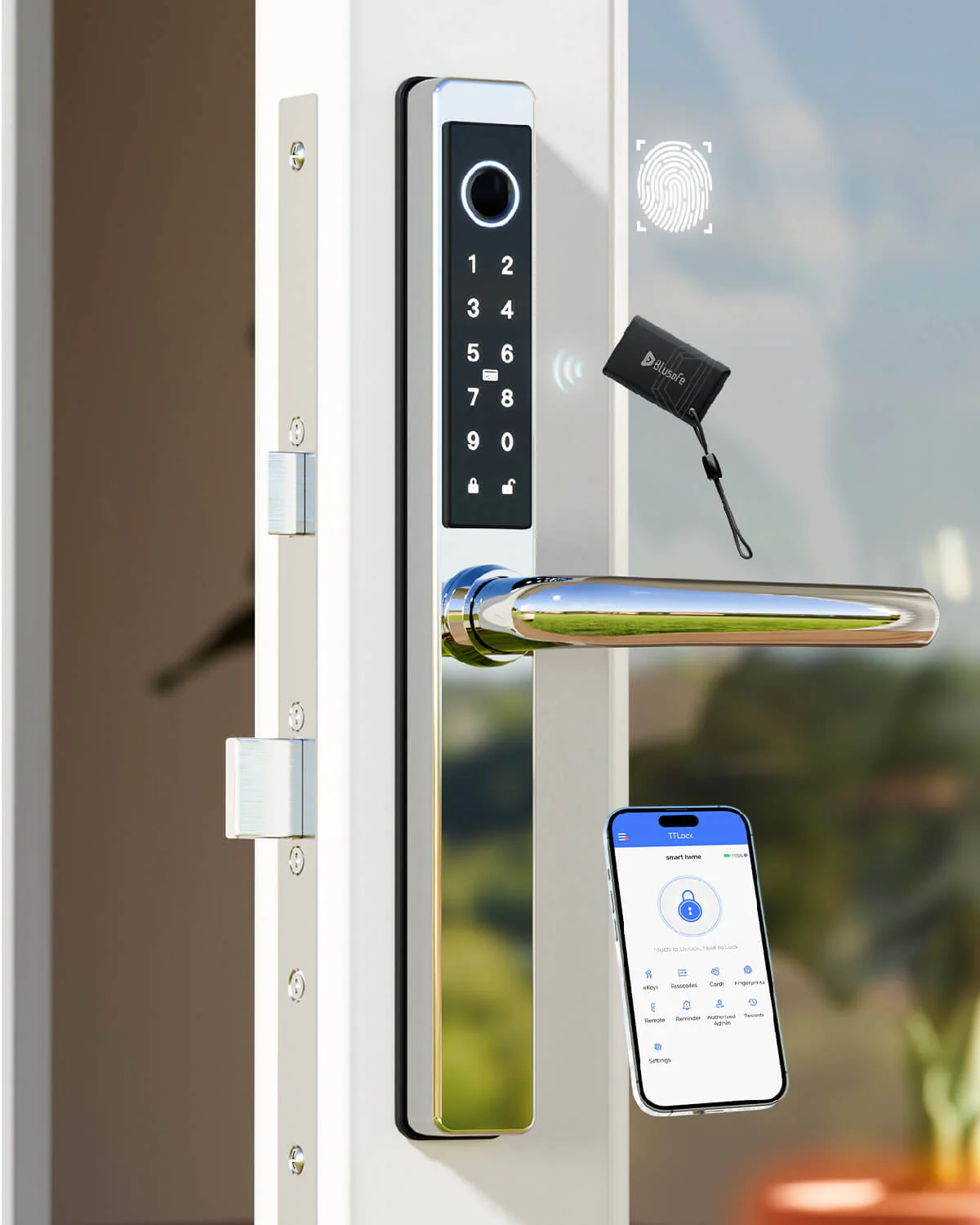

Origin Smart – Plus Smart Door Handle

Check the compatibility of your door here. This product is suitable for lift-to-lock doors.



A keyless door handle built with a 304 stainless-steel body, IP65 weather rating, and multiple access methods (fingerprint, PIN, RFID, app). Supports local/offline data storage and remote unlocking when paired with an optional Wi-Fi Bridge.



Access & Entry Features (All Methods)

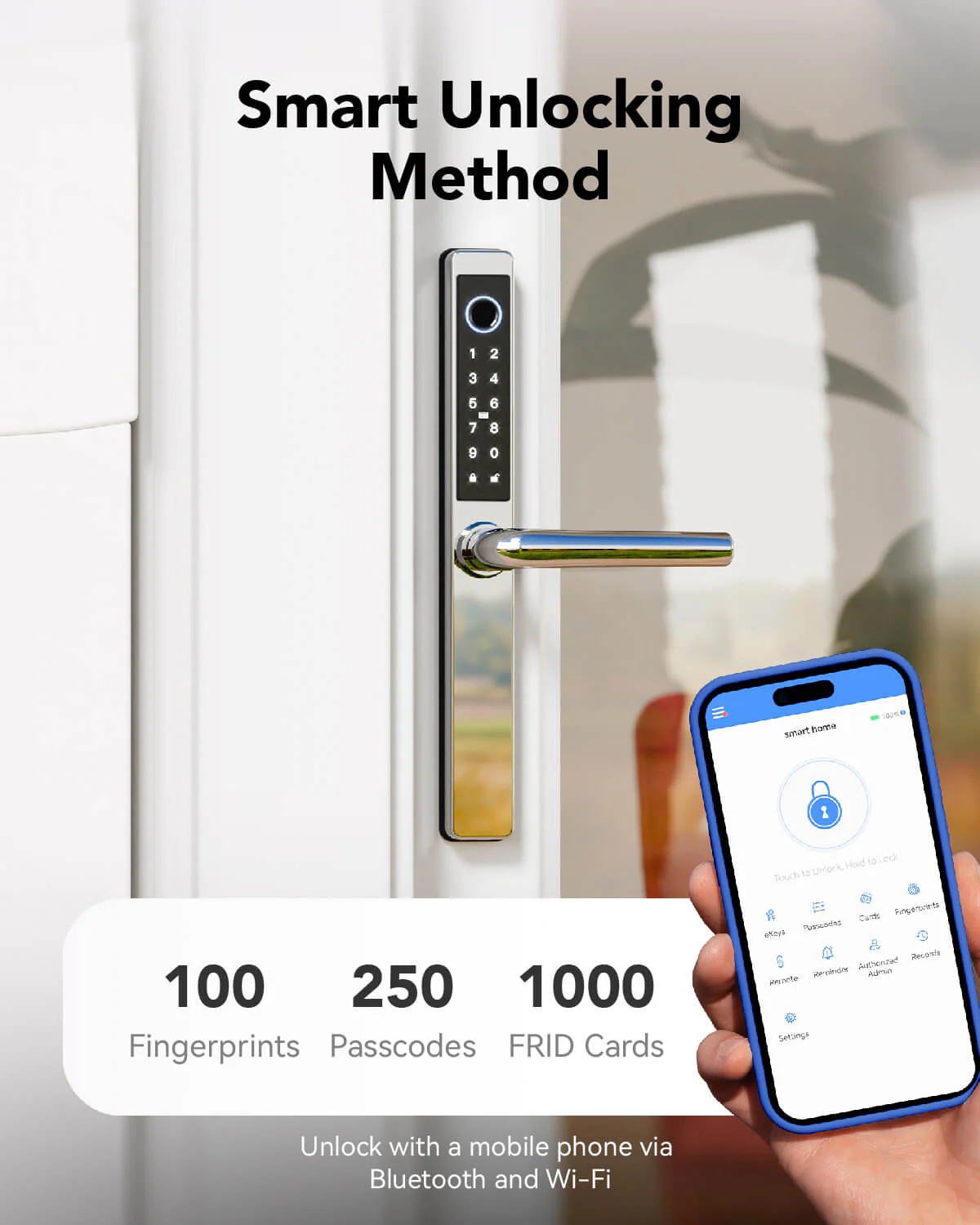

  • Fingerprint unlock (stores up to 100 fingerprints) using a 508dpi precision sensor

  • PIN/passcode unlock (stores up to 250 codes), including permanent, one-time, custom, and timed options

  • RFID key cards (stores up to 1000 encrypted M1 cards; 2 cards included)

  • Smartphone app unlock & management via TTLock

  • Remote unlocking from anywhere when using an optional Wi-Fi Bridge

  • Voice control compatibility with Amazon Alexa and Google Assistant

  • Mechanical backup keys (3 included)



Security, Privacy & Safety Features

  • Encrypted RFID + fingerprint data protection

  • Virtual password entry (anti code-theft / anti-peep style PIN entry)

  • Local AI self-learning + offline data storage (user data stored on the lock rather than in the cloud)

  • Built-in internal childproof lock

  • Emergency USB-C power port for access if batteries fail



Smart/App Functions (TTLock)

  • Lock/unlock via Bluetooth (and via Wi-Fi when paired with Wi-Fi Bridge)

  • Create, send, and manage eKeys (digital keys)

  • Create passcodes with time/date restrictions

  • View entry logs / activity records

  • Offline operation supported

  • Remote control + voice assistant integration (requires Wi-Fi Bridge)



Installation & Door Compatibility

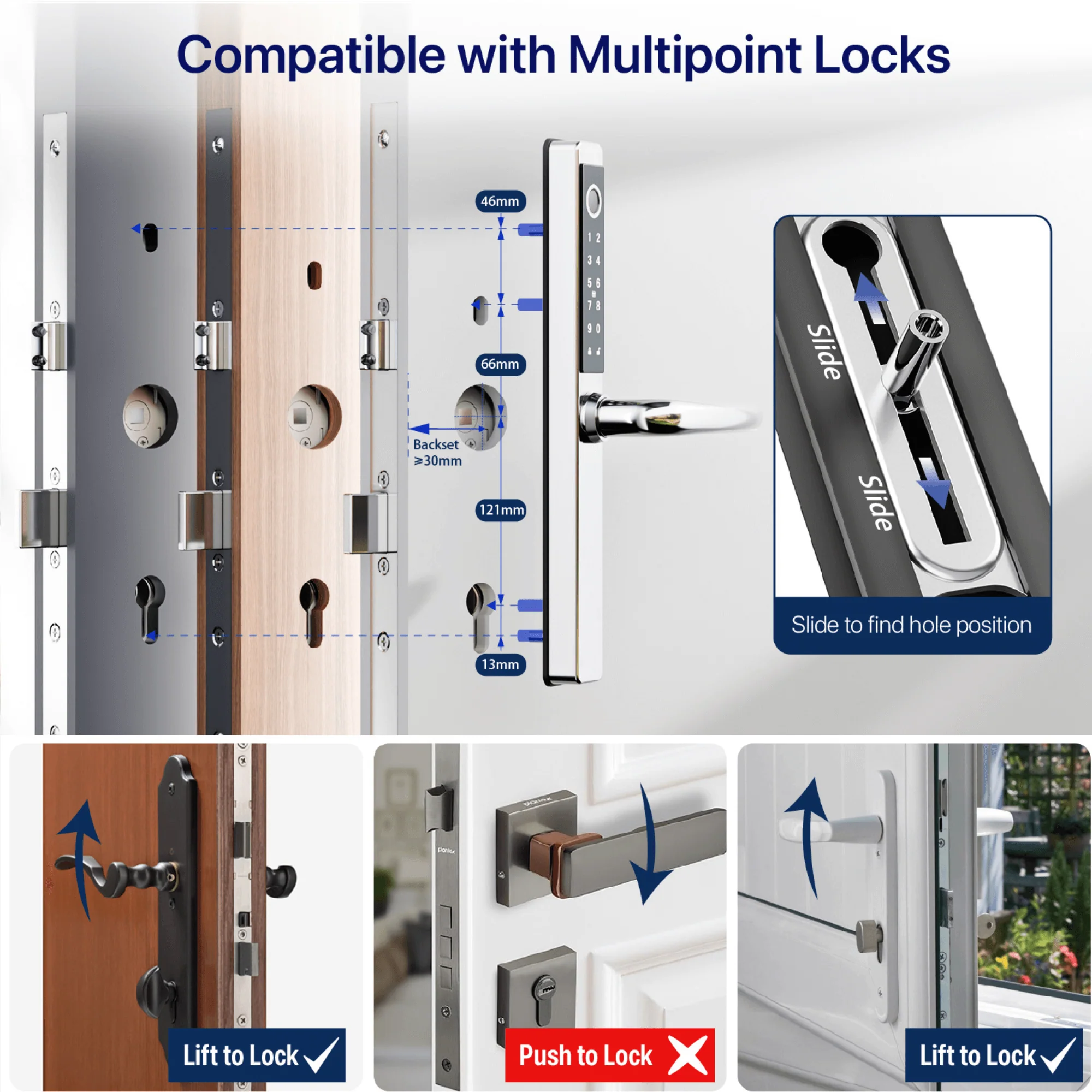

  • Adjustable screw centres designed to suit ~90% of lift-to-lock multipoint handle patterns (retrofit-focused)

  • Retrofit-friendly installation approach with minimal modification

  • Optional timber door kit available for wooden door installs

  • Lock compatibility: lever-operated multipoint or mortice lock

  • Backset requirement: ≥ 30mm

  • Door thickness range: 40–90mm



Technical Specifications

  • Material: 304 Stainless Steel

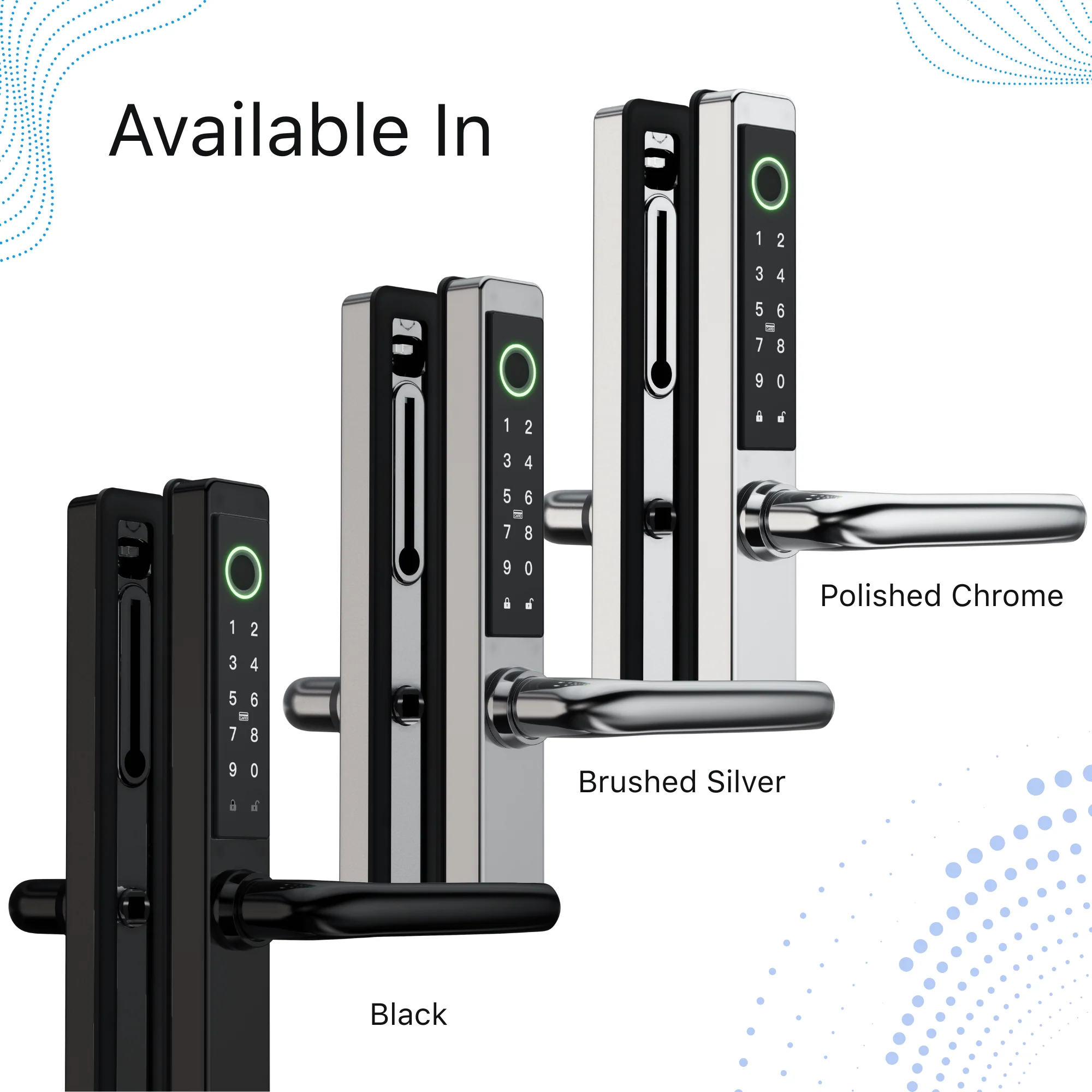

  • Finishes/Colours: Brushed Silver / Polished Chrome / Matte Black

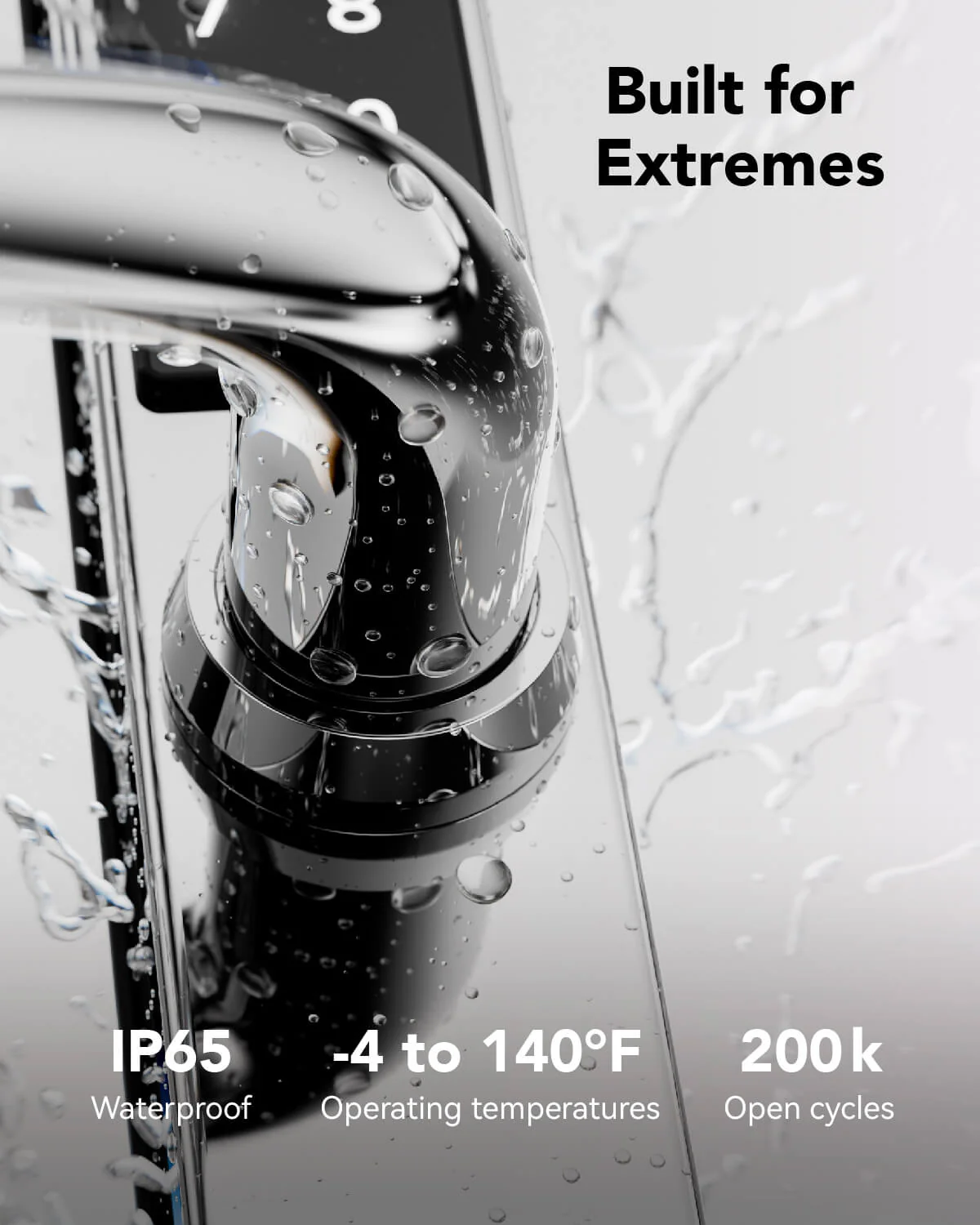

  • IP rating: IP65

  • Operating temperature: -25°C to 75°C

  • Humidity resistance: 10%–95% RH

  • Bluetooth: 5.0

  • Wi-Fi: via optional Wi-Fi Bridge

  • Power: 4 × AAA alkaline batteries

  • Battery life: 6+ months

  • Emergency power: USB-C

  • Phone requirements: iOS 7.0+ / Android 4.3+

  • Supported platforms: TTLock / Alexa / Google Home



What’s Included (In the Box)

  • Origin Smart – Plus smart handle

  • 3 spindles: 80mm / 100mm / 110mm

  • 2 RFID key cards

  • 3 mechanical keys

  • Fitting jig

  • Suction cup

  • 2 gaskets

  • Full screw set for multipoint doors
